Laravel Repository Pattern Demystified

Using Repository Pattern In Laravel 5 – Eloquent Relations And Eager Loading

Preface

Before we go to the main topic of the article, I’ll give you a short heads up for some design problems you may face. Recently one of my clients complained that some pages open very slowly. When I say very, I mean incredibly slow. So I’ve decided to debug that page and what I saw shocked me. Query section was showing that on that page was executed an staggering 16500+ queries !!

I found troubling part of the code responsible for that. It was 3 foreach loops, querying an attribute and it’s related attributes. It worked fine, until there was about 5.5k items in the database. Basically, here is what’s happening:

So if  $main_object = MainObject::all();  returns 5.5k results, first  foreach  will run 5.5k times,  second also 5.5k and third same as much. By using ORM developers very often make the mistake of writing very inefficient database queries, and ORM makes them even more difficult to spot. This problem is known as N+1 problem. And I guess previous developer was unaware of that. To avoid this problem we use eager loading.

What Is Eager Loading?

To put it simple, eager loading is a method of doing everything when asked. It’s also exactly opposite from lazy loading when we execute tasks when needed. Eager loading helps us to avoid common performance pitfalls, as you saw in my example above.  You’ll understand it better through an example so let’s imagine the following situation:

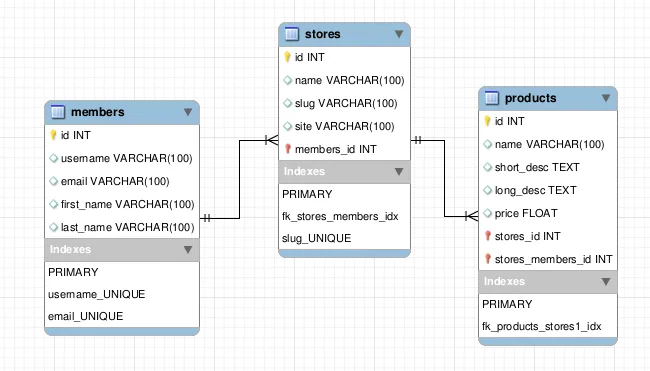

Stores Model

we have an Enhanced Entity Relationship model (EER) with three entities each related to another. We can read the EER as follows: Each member can have many stores, but one store belongs to only one member. Each store can have many products, but one product belongs to only one store.

Next step is to create an Eloquent models for these entities.

Member:

Store:

and Product:

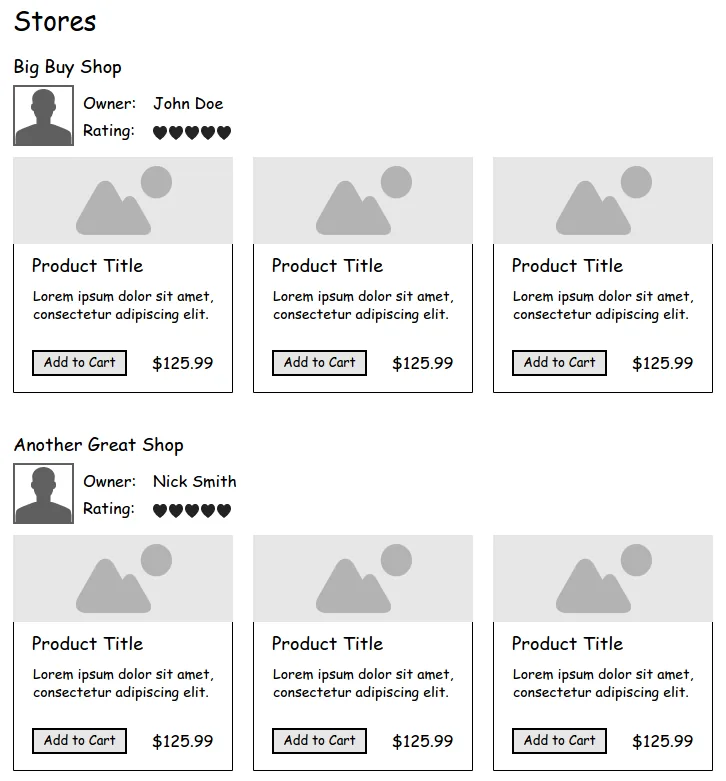

Imagine that you are building an application that will allow your users to create their own store. Of course, like in every other store, users are able to create multiple products. Also, we want to create one page that will display all stores and top products from each store. Something like this:

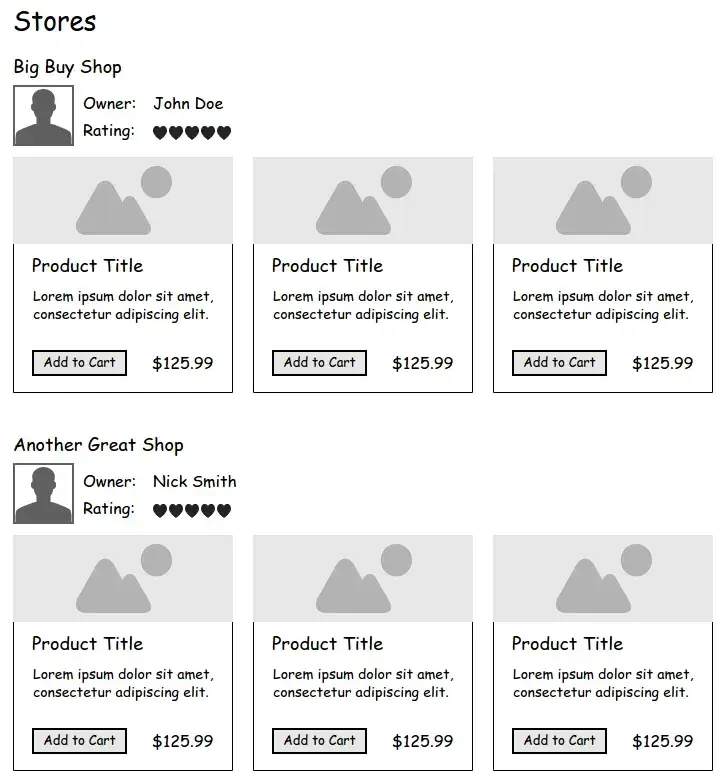

Store List Mockup

You may end up with something like this in your controller:

in the View you want to display that data:

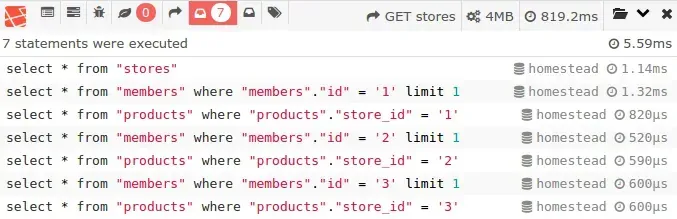

And the result is: N Plus One Problem

For this example, I’ve seeded the database with 5 members, 3 stores and 4 products. First query is to get all stores from the database and that is +1 part of N+1 problem. In this specific case, N represents a number of stores returned from the first query, since that many times we’ll execute  select *from  query on the products and members table. Since we have 3 stores, that means we’ll make 3 queries on the members table and 3 additional queries on the products table. In total we executed 3+3+1 queries.

Now imagine what would happen if we had 5000 or 10000 stores? You would have 10-20k queries executed every time when some user visits that page. And what if you have 10k or 100k visits in 24h? Nightmare! It’s clear now that this approach is a performance killer. No matter what DB you use, how powerful your server is it will always reach the tipping point where your powerful hardware will no longer be your ally. You can try to improve performance by caching these queries, using Redis for example. And it will work just fine, but just temporarily. That way you only delay the inevitable end, which will cost you a lot of money, time and probably you’ll lose some client(s) or your userbase will be reduced significantly.

Here eager loading come to rescue. Using eager loading in Laravel is pretty simple. The relations you want to be eager loaded you specify in the  with  method:

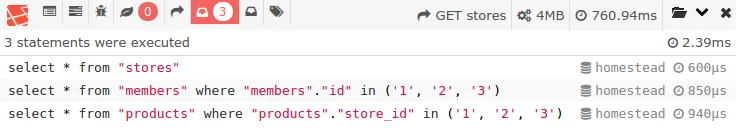

Now, instead executing 7 queries, by using eager loading we reduced number of queries to just 3:

N Plus One Problem

And it’ll be just three queries even if there is a 10k store entries. As you can see, wise use of eager loading may drastically increase the performance of your application. To actually have an improvement, we also need to have an index on the id fields in the members and products table. With a ton of records, executing  in( '1', '2', ... )  on non-indexed fields can take a while.

After this quick introduction into eager loading, let’s see how we can use the relations with repositories.

Extending Repository Class

I’ll show you one way how you can use relations in the concrete repository classes. Here is an example of end result:

As you can see, we have a  with  method where we can chain our model relations. This method will be similar to the Laravel’s Query Builder  with  method.

Now we need to attach each provided relation to the model:

And that’s it,  only thing left is to update our  all()  repository method (and any other you want) to use eager loading:

As I have already mentioned, you can add multiple relations within the  with()  method. Here is an example of StoresController :

In the View you can display data however you want, for testing purposes this is just enough:

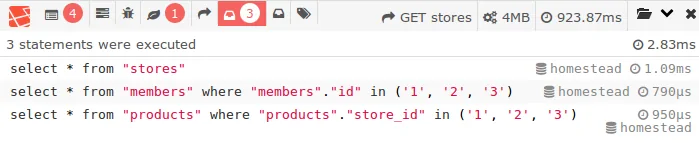

As expected, we now have only three queries:

Eager Loading

Conclusion

By using eager loading you can improve your application performance. Sometimes as your application grows, even eager loading is not enough to keep up top performance. In the next tutorial I’ll show you how you can decorate repositories to cache the queries for better performance.
